Asbestos-free, extruded, high-performance lining, (semi-flexible on 0,6 and 0,7 mm thickness only),
metal-free, of a greyish green colour.
Basic materials: short-cut, high-pressure injection aramid fibres, synthetic resin, oxides.
High friction coefficient, very stable and smooth friction qualities, very good wear and tear.
Quiet, gentle on counter material, high burst speed.
Highly stress-resistant brakes and clutches, agricultural and building machinery, general machine building.
Very good adhesive qualities. For dry running.
If used under oily conditions mind the reduced friction factor.
Embossed honeycomb pattern (dust grooves), available from a thickness of 1mm.
Sheets, ground on both sides.
Thickness mm: 0,6 - 1 - 1,5 - 2 - 2,5 - 3 - 4 - 5
Custom cuts, rings, ring segments, blanks, ready-to-install parts acc. to customer drawing.
Friction linings glued together with friction pads are available as ready-to-install machinery components.
| Tensile Strength | 28 N/mm2 | Debsity | 1,40 g/cm3 |
| Compressive Strength | 300 N/mm2 | ||
| Shear Strength | 15 N/mm2 | Hardness Shore (D) | 79 |

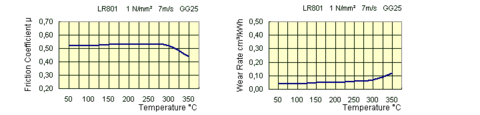

| Friction Coefficient | 0,51 | Max. Continuous Temp. | 280 °C |
| Surface Pressure | 3 N/mm² | Max. Intermittent Temp. | 390 °C |
| Rubbing Speed | 30 m/s | Wear Rate | 0,04 cm3/kWh |
Recommended mating surface: Perlitic cast iron or steel hardness HB30 => 180
* The data are for your guidance only and do not render the application-specific testing unnecessary.
Accordingly, we cannot guarantee their accuracy as there are lots of possible applications.
The operating values are maximum values which must not occur simultaneously. Observe safety values!
The temporarily permissible temperature - measured on the pulley - may occur for only a few seconds.
For special applications we recommend you to consult our application engineers.
